Top Categories:AAC(ALC)Sheet Products,AAC (ALC) from insulation block products

AAC (ALC) from insulation block products


  Jiangshan autoclaved aerated concrete block, based on silica sand, Portland cement and lime as the main raw material, mixed with aluminum powder, by ingredients, mixing, pouring, pre-raising, cutting, autoclave, curing and other processes made into a light porous silicate products, because after the gas contains large amounts of hair uniform and fine pores, hence the name of autoclaved aerated concrete. English:Autoclaved aerated concrete(AAC)。

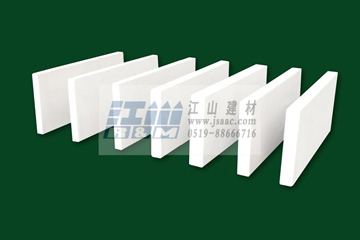

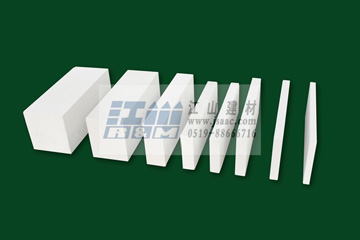

B03 from the thin insulation block   B04 from insulation thin block -1

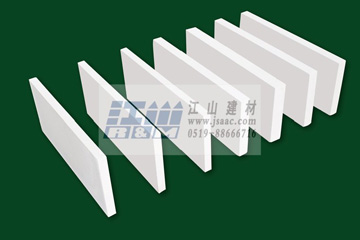

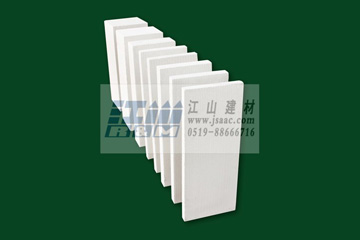

  Thin insulation block B04 from -2

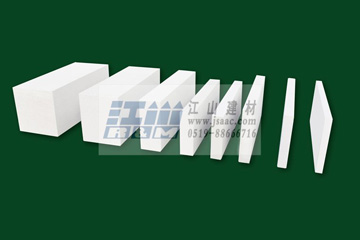

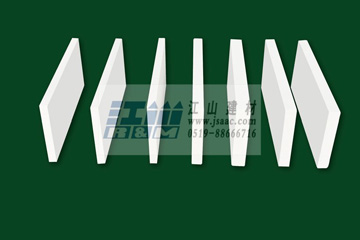

B05 from insulation thin block -1

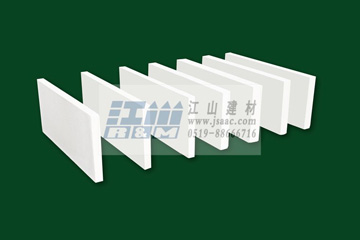

Thin insulation block B05 from -2

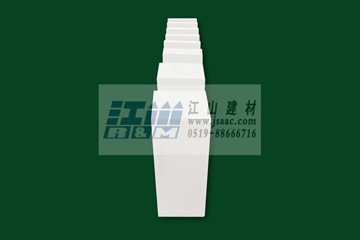

B06 from the thin insulation block

B07 from the thin insulation block -1

B07 from the thin insulation block -2

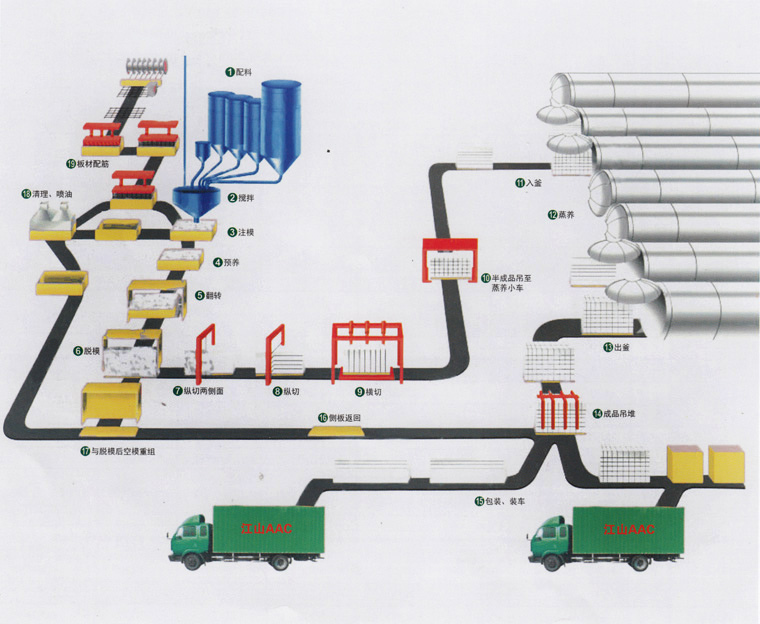

Steamed sand aerated concrete block production flow chart





Jiangshan AAC Wall Insulation systems
  Jiangshan AAc wall insulation system mainly from aerated concrete block wall from the sand, special mortar and cold bridge Remedy (cold bridge for use AAc lightweight thin slab insulation construction) of three parts. The system compared to other wall insulation systems. It has a low cost, long life, good fire performance, high impact strength, without restrictions, and green-storey many other advantages. External wall insulation is the best Wan case.


  Wall insulation system from the wall by the self-insulation, thermal bridges and shear heat treatment measures, energy-saving building materials external wall insulation system, the interface between different actions constituted an average heat transfer coefficient of the external walls of the system to meet the energy-efficient buildings to the wall body thermal performance requirements. Wherein the self-insulation wall blocks the precise use of special adhesive dry thin gray masonry joints, special surface mortar dry to form a thin plaster; the inside of the thermal bridge (concrete beams, columns, etc.) and shear walls and other parts of or outside of the puzzle using the stick thin autoclaved aerated concrete blocks insulated; take Rachel, crack, seepage treatment measures since insulation wall and concrete beams, columns, shear transfer surface.



AAC Jiangshan building insulation system

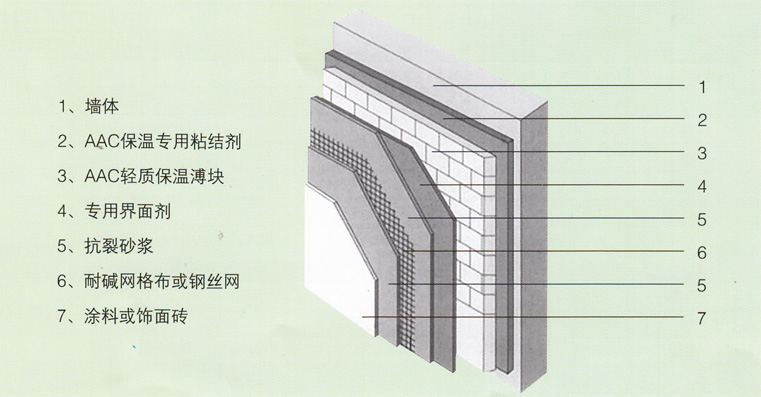

   AAC building insulation system refers posted outside the country or inside patch AAC thin lightweight insulation blocks and various ancillary auxiliary materials, solve building wall, roof insulation of the entire treatment program. The system composition diagram is as follows:






Specifications and performance Jiangshan AAC Block

Variety

Flat block (mm)

TU groove block (mm)

Thin insulation block (mm)

Length L

600

600

600

The thickness (width) B

100,150,200,250

150,200, 250

30,40,50

Height H

240, 250,300

240,250,300

240, 250,300



Volume density levels

Dry density

Compressive strength rating

Size deviation

Product quality levels

B07

≤725

A5.0

L±4/B,H±2

Qualified

B06

≤600

A5.0

L±3/B,H±1

Excellence in goods

B06

≤625

A3.5

l_±4/B,H±2

Qualified

B05

≤500

A3.5

L±3/B,H±1

Excellence in goods

B05

≤525

A2.5

L±4/B,H±2

Qualified

B04

≤400

A2.0

L±3/B,H±1

Excellence in goods

B04

≤425

A2.0

L±4/B,H±2

Qualified

B03

≤300

A1.0

L±3/B,H±1

Excellence in goods
